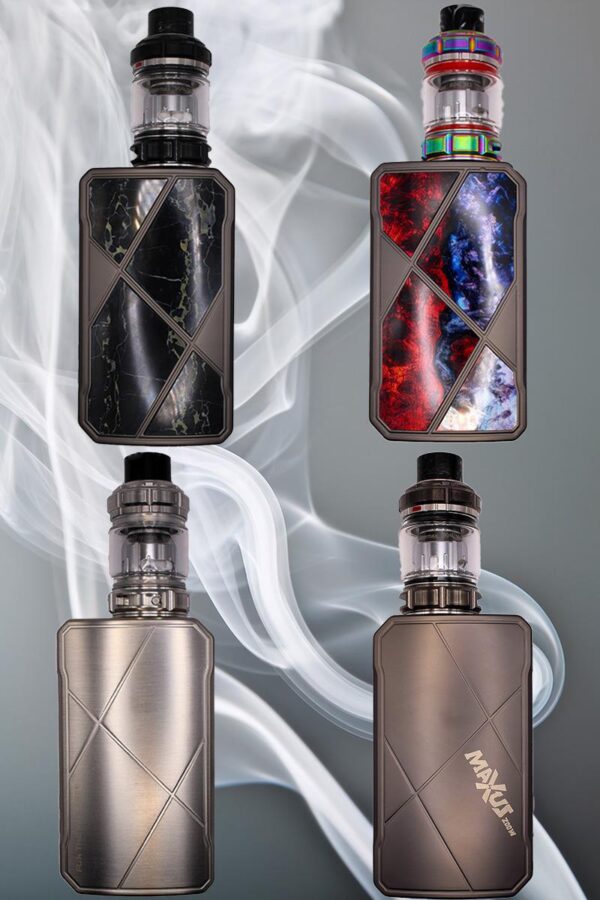

FreeMax Maxus 200W Metal Kit

The FreeMax MAXUS 200W Metal Kit is a versatile vaping system that combines a high-powered mod with a refined, child-resistant top-fill tank. Designed for reliable performance, this kit features advanced coil technology and a range of customizable settings to suit your vaping style.

Key Features

• Upgraded Coil Technology:

  The system uses FM COILTECH 4.0, incorporating military-grade SS904L mesh and a tea fiber cotton blend. This setup ensures a stable vaping experience with clear, authentic flavors.

  • Includes a range of 904L M Series Mesh Coils:

    • M1: 0.15Ω (Rated 40-70W, best at 65W)

    • M2: 0.2Ω (Rated 60-90W, best at 80W)

    • M3: 0.15Ω (Rated 80-110W, best at 100W)

    • M4: 0.15Ω (Rated 70-110W, best at 95W)

• Advanced Mod Features:

  • OLED Display: Offers a clear, user-friendly interface for monitoring settings.

  • Battery Flexibility: Supports both single and dual 18650 batteries with SmartLoad Tech, allowing for easy, polarity-free battery installation.

  • Multiple Output Modes: Choose from Power, VPC, Bypass, TC-Ti, TC-SS, TC-Ni, and TCR modes for tailored vaping performance.

  • Smart Coil Detection: Automatically adjusts the mod’s operation when a temperature control coil is detected.

• Enhanced Safety and Convenience:

  • Child-Resistant Top-Fill Tank: The MAXUS Pro Metal Tank features a slide-to-open mechanism that meets CRC certification standards for child resistance.

  • Robust Build: The metal design ensures durability and reliability in everyday use.

Technical Specifications

• Mod Dimensions: 135mm x 28mm x 52.4mm

• Mod Weight: 267.8g

• Output Wattage: 5-200W (with temperature control range from 100°C to 315°C / 200°F to 600°F)

• Input Voltage:

  • Single Battery: 3.3-4.2V

  • Dual Battery: 6.6-8.4V

• Output Voltage: 0.7-8.4V

• Tank Capacity: 5 mL

• Battery: 2 x 18650 (compatible with both single and dual battery setups)

Kit Contents

• 1 x MAXUS 200W Mod

• 1 x MAXUS Pro Metal Edition Tank

• 1 x 904L M2 0.2Ω Mesh Coil (pre-installed)

• 1 x Extra 904L M1 0.15Ω Mesh Coil

• 1 x Extra Glass Tube (5 mL)

• 1 x Extra O-Ring

• 1 x USB Type-C Cable

• 1 x Warning Card

• 1 x Warranty Card

• 1 x User Manual
